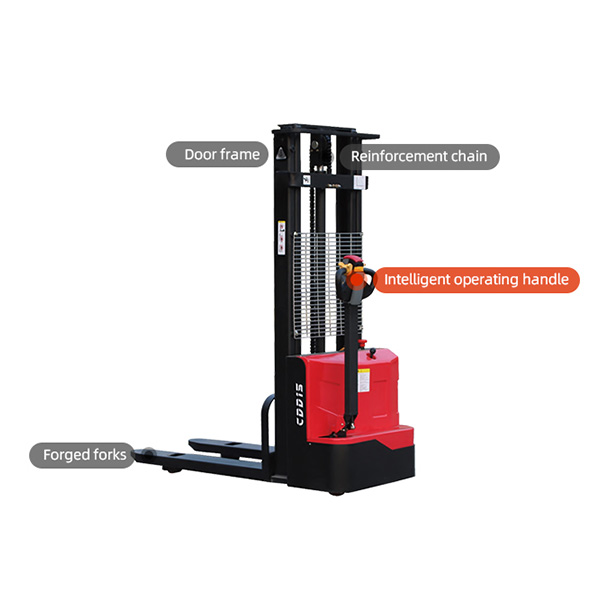

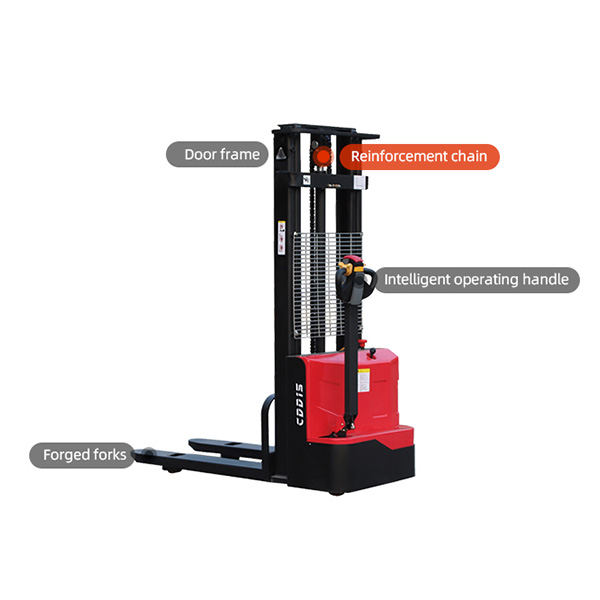

Configuration
We do a good job in every detail of the product..




-

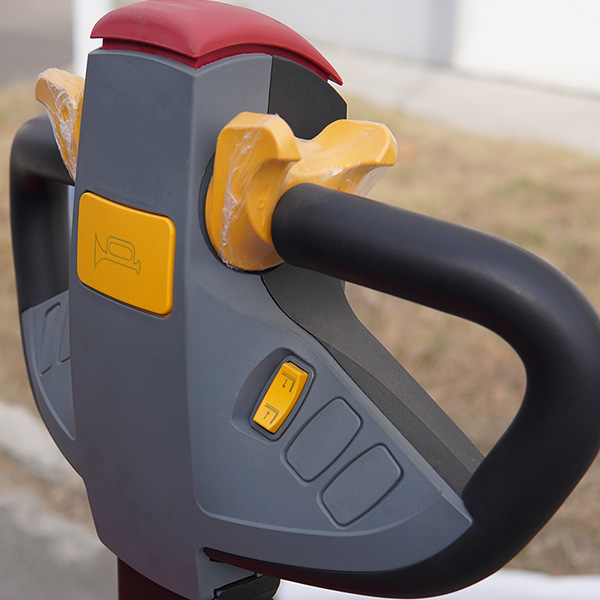

Intelligent operating handleThe intelligent operating handle can significantly improve work efficiency and better adapt to complex and changing working environments and task requirements.
-

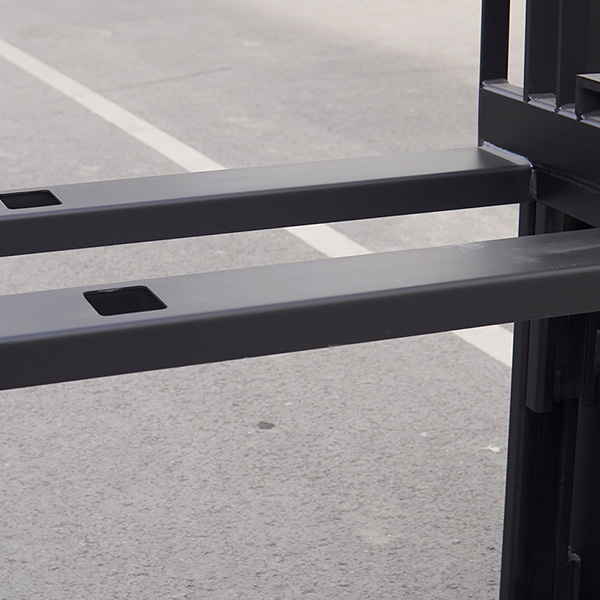

Forged forksThe forged fork is made of high-strength material, which is forged at high temperature and precisely processed to have extremely high strength and durability. This material and process ensure that the forged fork can withstand heavy loads and frequent use
-

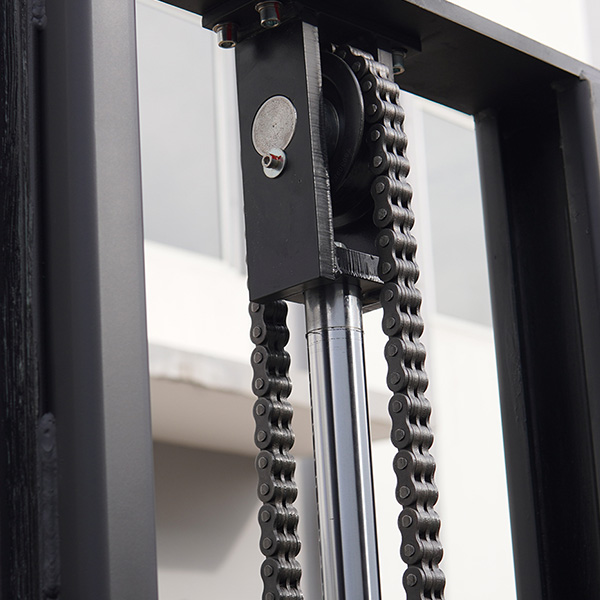

Reinforcement chainHigh-strength chain is a kind of lifting equipment designed to withstand high loads and harsh working environments. Its main features are high strength, wear resistance and corrosion resistance.
-

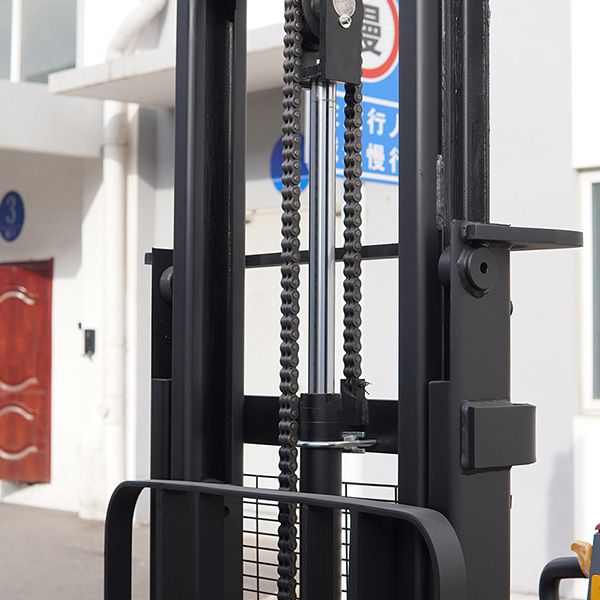

Door frameThe stacker gantry is the inner and outer door frame of the lifting mechanism. Its stability and load-bearing capacity are crucial to the working efficiency and operating safety of the forklift.
Features
Products you can trust.
- Small size, light and flexible, simple operation;
- With release brake, reverse brake and three kinds of emergency brake functions to ensure the safety of the car;
- Adopting permanent magnet motor with excellent performance and low heat generation; Built-in charger, colloidal maintenance-free battery,easy to use and maintenance free;
- CURTIS control system, control precision, high efficiency and stability;
- Reinforced design of fork supporting arm, high overall strength, not easy deformed.
Specs & Compare
Technical specifications for 1.5Ton Electric Pallet Stacker
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
- Load capacity
- 1500kg
- Wheelbase
- 1240mm
- Overall Length
- 1755mm
- Overall Width
- 800mm
- Lift Height
- 6000mm
- Lowered mast height
- 2050mm
- Fork Dimension
- 1150×160×60mm
- Ground Clearance at center of wheelbase (Min)
- 30mm
- Turning Radius
- 1435mm
- Type ofoperation
- Walkie
